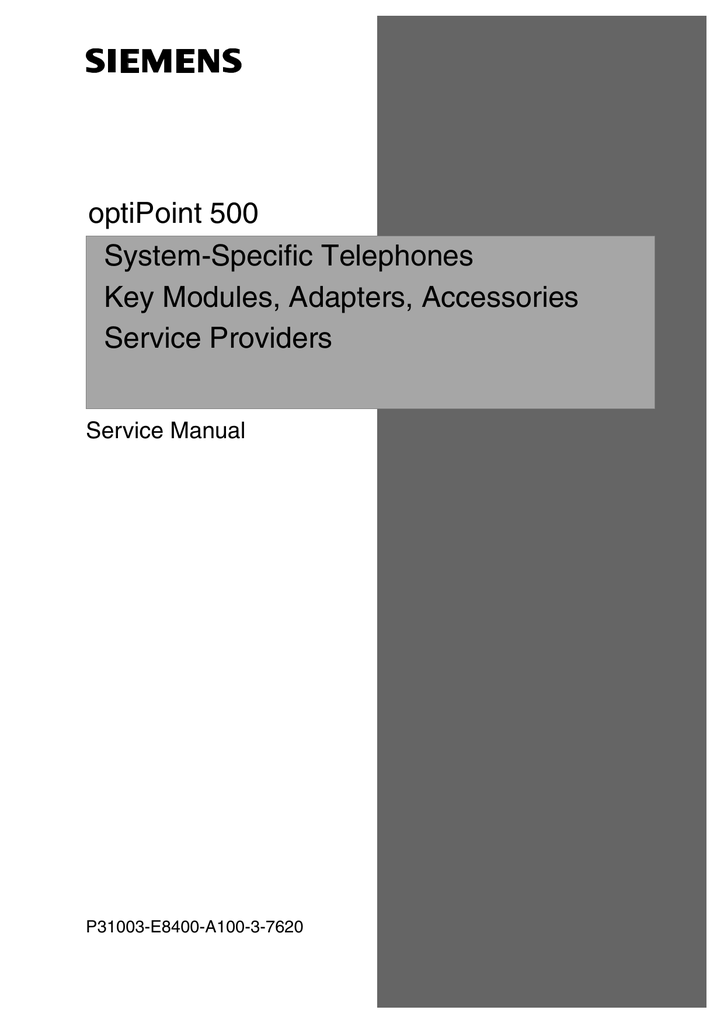

P31003-E8400-A100-3-7620
Service Manual

Do you have a Siemens OptiPoint 500 phone?Need to know how to configure your mailbox password? Follow along as we break down the steps for you. Auto-configuration for voice mailboxes must be enabled by your System Administrator. The Siemens Optipint 500 Standard similar also to the HiPath Basic allowing digital communication but is full-featured, with full-duplex speakerphone for users requiring to multitask while on the telephone.The Siemens optiPoint 500 Standard also offers USB connectivity for CTI connections. Siemens HiPath OptiPoint 500 Advance Telephone Handset.

9-1

Ordering Information

Products and Spare Parts

9

Ordering Information

9.1

Products and Spare Parts

9.1.1

Initial Equipment: Telephone Models, Optiset E Key Modules,
and Adapters

Name

Color

Part Number

optiPoint 500 entry

arctic

S30817-S7101-A101-*

optiPoint 500 economy

arctic

S30817-S7108-A101-*

optiPoint 500 basic

arctic

S30817-S7102-A101-*

optiPoint 500 standard

arctic

S30817-S7103-A101-*

optiPoint 500 advance

arctic

S30817-S7104-A101-*

optiPoint key module

arctic

S30817-S7105-A101-*

optiPoint signature module

arctic

S30817-S7106-A101-*

optiPoint BLF

arctic

S30817-S7107-A101-*

optiPoint 500 entry

Auto-Guide™ 3000 is a hands-free steering system that is capable of delivering sub-metre, decimetre and centimetre accuracy. On Track For More Profit With guidance systems having been proven to save up to 12% fuel in field operations, more and more farmers are considering the benefits of investing in auto. This application informs and explains in detail about the car repair manual and also comes with easy to understand explanations. Especially in the wiring. Allison Transmission 3000/4000 series fault code list - download PDF manual See also: Allison Transmission PDF Service Manuals Allison Transmission Fault Codes PDF manuals Title File Size Download Link Allison 3000-4000 Series Troubleshooting Manual.pdf 15Mb Download Allison Transmission - Shift Selector - Operator and Diagnostic Trouble Code manual.pdf 151.7kb Download. https://luckyatlanta.netlify.app/auto-download-3000-manual.html.

manganese S30817-S7101-A107-*

optiPoint 500 economy

manganese S30817-S7108-A107-*

optiPoint 500 basic

manganese S30817-S7102-A107-*

optiPoint 500 standard

manganese S30817-S7103-A107-*

optiPoint 500 advance

manganese S30817-S7104-A107-*

optiPoint key module

manganese S30817-S7105-A107-*

optiPoint signature module

manganese S30817-S7106-A107-*

optiPoint BLF

manganese S30817-S7107-A107-*

Table 9-1

opiPoint 500 models

Name

Color

Part Number

optiPoint phone adapter

arsenic

S30817-K7110-B108-*

optiPoint analog adapter

arsenic

S30817-K7110-B208-*

Siemens Optipoint 500 Standard Manual

optiPoint ISDN adapter

arsenic

S30817-K7110-B308-*

optiPoint recorder adapter

arsenic

S30817-K7110-B408-*

Table 9-2

optiPoint 500 adapters

optiPoint 500 workpoints

The optiPoint 500 telephones are a family of digital terminals in a modern and attractive style for use on the HiPath DX, Realitis DX and iSDX, at software Revision 8, Universality. Ranging from the simple digital phone to sophisticated feature phones, these telephones are positioned to satisfy a wide range of business needs.

A series of options are presented to the user in an easy to manage way via the display and the three menu keys, thus enabling fast and easy access to the DX telephony features.

Benefits

• Improved staff productivity

• Easy to use

• Comprehensive range of telephones

• Comprehensive range of add-ons

• Two wire digital interface

• USB interface for data and TAPI applications

• Stylish design

The following optiPoint 500 telephones are available:

optiPoint 500 entry

Cost effective entry in to digital telephony.

optiPoint 500 economy

Low cost display phone with user programmable feature keys.

optiPoint 500 basic

Mid range feature phone with support for additional key units, an adapter and USB port.

HiPath DX

optiPoint 500 standard

Full duplex audio transmission for high quality conference calls.

optiPoint 500 advance

The professional choice for voice and data communications.

Each telephone offers different levels of complexity:

optiPoint 500 entry

•8 feature keys with LEDs

•Open listening (monitor)

•2 keys for setting ringer volume/pitch and handset/speaker receive volume

•Colours: arctic, manganese

The manual pdf of HTC One Max on phone setup and transfer chapter describes how to setting up your new phone for the first time, how to transferring content from an Android phone, transferring content from an iPhone, transferring contacts from your old phone through Bluetooth, getting contacts and other content into HTC One max, restoring your backup from your online storage to HTC One max, transferring photos, videos, and music between your phone and computer and about the fingerprint scanner feature. Htc one max user manual pdf. HTC One Max user guide manual available to download in pdf file format with 3.33 MB and contains of 210 pages.

This is an entry level digital telephone for general use. The standard keypad is complemented by eight pre-defined feature keys including message waiting LED.

optiPoint 500 economy

•12 feature keys with LEDs

•Open listening (monitor)

•2 keys for setting ringer volume/pitch and handset/speaker receive volume

•3 dialogue keys for easy menu navigation and selection

•2 by 24 adjustable display

•Colours: arctic, manganese

This is a low cost display phone allowing the user to personalise the LED keys via an interactive menu system. The keys may be used for keysystem manager/ secretary working or for frequently dialled numbers and other DX features. The display provides information such as caller's name or number and is used to guide the user through the menu system.

optiPoint 500 basic

•12 feature keys with LEDs

•Open listening (monitor)

•USB interface

•1 adapter bay

•Additional key module support

•2 keys for setting ringer volume/pitch and handset/speaker receive volume

•3 dialogue keys for easy menu navigation and selection

•2 by 24 adjustable display

•Colours: arctic, manganese

Extra functionality is available through the range of optiPoint 500 adapters and USB port. For instance, you could connect an additional optiPoint 500 phone, fax device or headset. Additional keys can be added via

the 16 or 90 key modules.

optiPoint 500 standard

•12 feature keys with LEDs

•Full duplex handsfree

•USB interface

•1 adapter bay

•Additional key module support

•2 keys for setting ringer volume/pitch and handset/speaker receive volume

•3 dialogue keys for easy menu navigation and selection

•2 by 24 adjustable display

•Colours: arctic, manganese

Offers the same functionality as the basic model plus full duplex handsfree talking.

optiPoint 500 advance

•19 feature keys with LEDs

•Full duplex handsfree

•Headset port

•USB interface

Refer to the Speedlight manual for detailed instructions. If the Speedlight supports the Creative Light- ing System, refer to the section on CLS-compatible digital SLR cameras. The D40 is not included in the “digital SLR” category in the SB-80DX, SB-28DX, and SB-50DX manuals. Refer to the Speedlight manual for detailed instructions. If the Speedlight supports the Creative Light- ing System, refer to the section on CLS-compatible digital SLR cameras. The D40x is not included in the “digital SLR” category in the SB-80DX, SB-28DX, and SB-50DX manuals. Mar 24, 2015  Nikon D40 DSLR User Manual, Instruction Manual, User Guide (PDF) Other highlights include 2.5-inch LCD screen, 2.5fps continuous shooting, 8 Digital Vari-Programs, in-camera image editing and image optimize setting lets users adjust color, contrast and sharpening as well as other image settings according to the type of scene or output desired. In addition to, the D40 offers a choice of seven Digital Vari-Program modes. Selecting a program automatically optimizes settings to suit the selected scene, making creative pho-tography as easy as rotating the mode dial. To take photographs in Digital Vari-Program modes: Digital Vari-Program modes are described below. Mode Description. Nikon digital camera d40 user manual. The Nikon D40 is designed to work with the AF-S and AF-I lens, featuring built-in drives of the autofocus system. It is possible to use the D40 with lens without built-in drive, but in this case focusing is performed manually. The D40 matrix has a resolution of 6.1 megapixels and physical dimensions of 23.6 x15.8 mm.

•2 adapter bays

•Additional key module support

•2 keys for setting ringer volume/pitch and handset/speaker receive volume

•3 dialogue keys for easy menu navigation and selection

•2 by 24 adjustable display with background lighting

•Colours: arctic, manganese

This is a top of the range feature phone with 19 programmable keys, built-in headset port, an option for two adapters and a backlit display.

16 key module

The optiPoint 500 16 key module is an add on device with 16 keys each with an LED. It provides 32 additional number/feature stores using the shift key on the phone. Up to two modules may be connected to the optiPoint 500 basic, standard or advance.

90 key module

The optiPoint 500 90 key module is an add on device with 90 keys each with an LED. It provides 180 additional number/feature stores using the shift key on the phone. A single module may be connected to the optiPoint 500 basic, standard or advance.

optiPoint 500 privacy module

The privacy module provides protection against telephone tapping. Also suitable for use on numerous digital and analogue handsets.

Adapters

The optiPoint 500 adapters are fully encapsulated, slide-in modules which can be installed and removed easily on the underside of the basic, standard and advance telephones. This enables the terminals to be adapted quickly and easily to accommodate specific workplace and organisational changes.

Siemens Optipoint 500 Advance

optiPoint 500 phone adapter

The optiPoint 500 phone adapter enables an additional optiPoint 500 telephone to be connected to the system without the need for additional cabling. The telephones can be reached

simultaneously via independent numbers.

optiPoint 500 ISDN adapter

The optiPoint 500 ISDN adapter enables standard basic rate ISDN terminals (e.g. PC with ISDN S0 card or video card) to be connected.

optiPoint 500 acoustic adapter

The optiPoint 500 acoustic adapter allows the following telephone accessories to be connected:

•Active loud speaker and desk microphone

•Headset

•Busy display/door opener

•Secondary bell/visual paging

optiPoint 500 analogue adapter

The optiPoint 500 analogue adapter allows the connection of an additional analogue terminal (e.g. group three fax machine, PC with modem card, cordless phone).

optiPoint 500 recorder adapter

Offers a connection for a recording device for recording important calls, plus an earphone interface for monitoring of calls.

optiPoint 500 PNT-E ISDN adapter

The ISDN adapter box PNT-E (Private Network Termination Evolution) enables remote data terminals, PCs, video equipment, group four fax and ISDN telephones to be connected at competitively low cost.

USB interface

The basic, standard and advance have a built-in USB port that may be used for CTI and data applications.

Accessories

The following accessories may be added to the optiPoint 500 telephones to enhance their performance and to tailor them for personal use.

Headsets

The headset replaces the telephone handset leaving both hands free when making a call. This is particularly important for users with high calling rates. The following headsets can be

connected to the optiPoint 500 acoustic adapter and the optiPoint 500 advance:

•Encore monaural

•Encore binaural

•Tristar

•Supra

•DuoSet

•Profile monaural

•Profile binaural

Desk microphone

The desk microphone replaces the microphone integrated in the telephone. It helps make optimum use of ‘hands free talking’ under difficult acoustic conditions and allows greater freedom of movement while using the telephone. An illuminated LED indicates that the microphone is activated. The microphone can be deactivated by pressing the mute key.

Dimensions: (HxWxD) in mm 25x68x77

Siemens Optipoint 500 Advance Manual English

Active loudspeaker

The active loudspeaker supplements the loudspeaker integrated in the telephone. It improves the acoustic quality and is particularly suitable for telephone conferences. The loudspeaker is also

a popular accessory for individual offices of senior staff.

Dimensions: (HxWxD) in mm 160x100x95

Second earphone

A second earphone (listen only) can be connected to the recorder adapter to enable a second person to listen to a conversation.

Siemens Optipoint 500 Advance User Manual English

ACD working

Siemens Optipoint 500 Advance Manual Ελληνικα

An alternative key layout for ACD working can be configured on the optiPoint 500.
